Need Help Choosing the Right Clamp Size?

To make selecting the correct clamp easier, we've provided a handy reference table. Simply match either the outer diameter of your hose or the clamp size you're looking for, and you'll find the appropriate clamp size quickly and accurately.

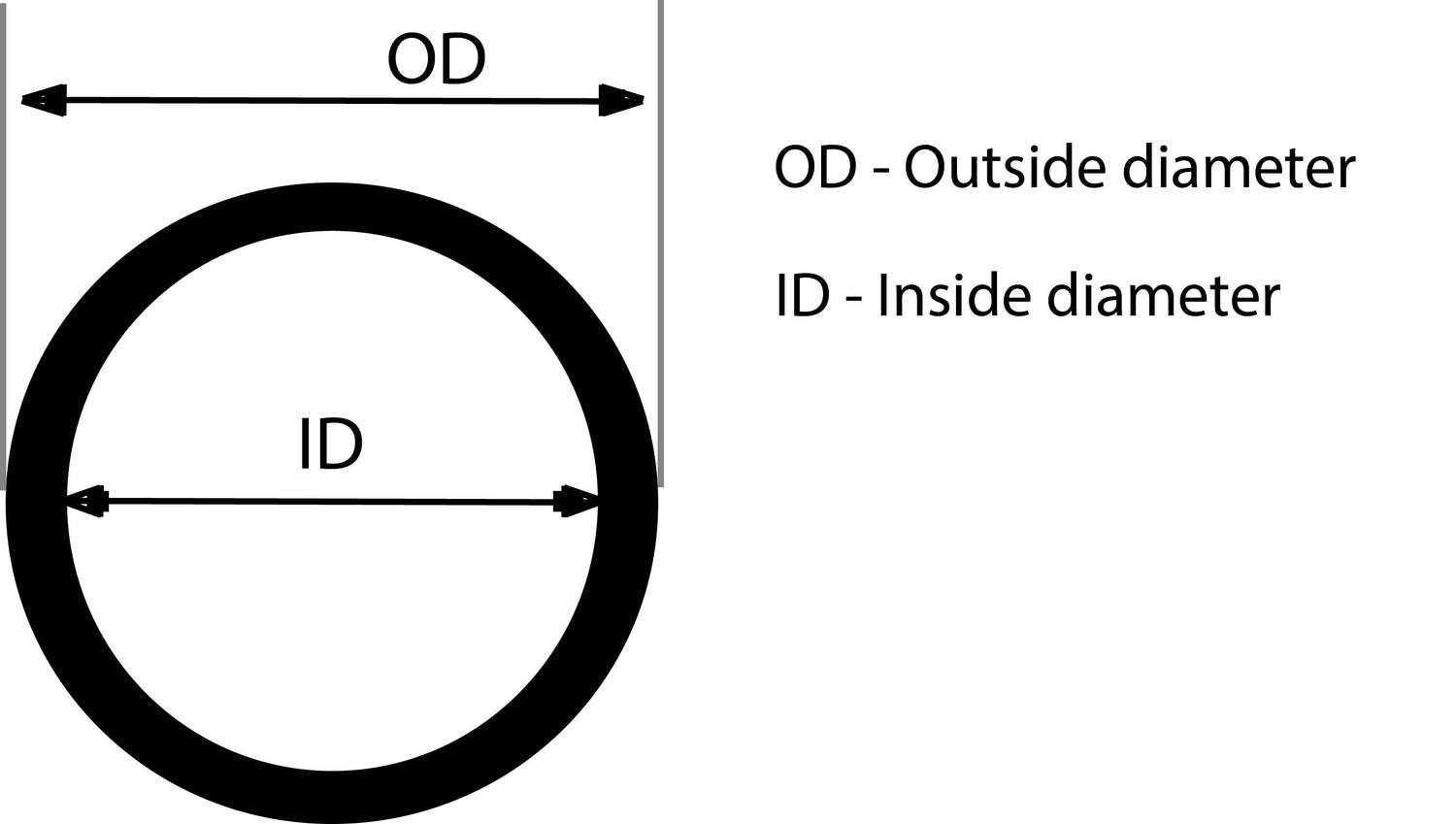

!! Please Make Sure You Measure The Outside Of The Hose !!

Clamp Part Number Clamp Size Band Width Outer Diameter
(Hose) 		Samco Hose Inner Diameter
(Hose) 		Link
HCB-12 9.5-12mm 9mm 12mm
(MAX)		 1mm, 6mm Buy Now
HCB-16 11-16mm 9mm 16mm
(MAX)		 6.5mm, 8mm Buy Now
HCB-20 13-20mm 9mm 20mm
(MAX)		 9.5mm, 11mm Buy Now
HCB-22 14-22mm 13mm 22mm
(MAX)		 13mm Buy Now
HCB-25 17-25mm 13mm 25mm
(MAX)		 16mm Buy Now
HCB-30 22-30mm 13mm 30mm
(MAX)		 18mm, 19mm, 20mm, 22mm Buy Now
HCB-35 25-35mm 13mm 35mm
(MAX)		 25mm Buy Now
HCB-40 30-40mm 13mm 40mm
(MAX)		 28mm, 30mm, 32mm Buy Now
HCB-45 35-45mm 13mm 45mm
(MAX)		 35mm Buy Now
HCB-50 35-50mm 13mm 50mm
(MAX)		 38mm, 41mm Buy Now
HCB-55 40-55mm 13mm 55mm
(MAX)		 45mm Buy Now
HCB-60 45-60mm 13mm 60mm
(MAX)		 48mm Buy Now
HCB-70 50-70mm 13mm 70mm
(MAX)		 51mm, 54mm, 57mm Buy Now
HCB-80 60-80mm 13mm 80mm
(MAX)		 60mm, 65mm, 68mm Buy Now
HCB-90 70-90mm 13mm 90mm
(MAX)		 70mm, 76mm Buy Now
HCB-100 80-100mm 13mm 100mm
(MAX)		 80mm, 83mm Buy Now
HCB-120 90-120mm 13mm 120mm
(MAX)		 89mm, 102mm Buy Now
HCB-140 110-140mm 13mm 140mm
(MAX)		 110mm, 114mm, 127mm Buy Now
